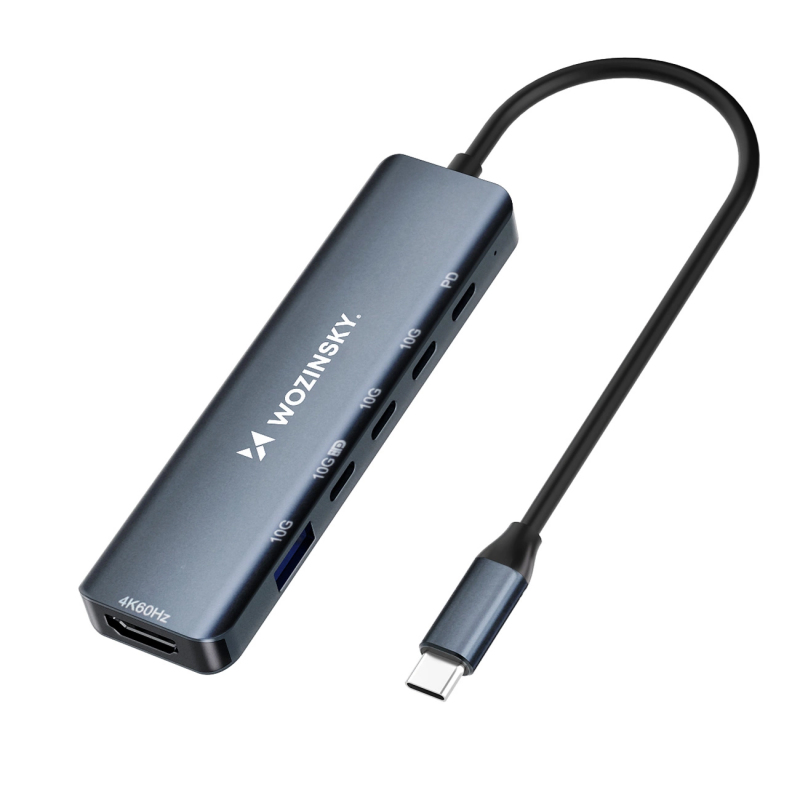

Hlavní stránkaUSB-C 6 in 1 Hub Wozinsky WHBC10Y4S Multifunctional, Aluminum, with 25 cm Cable - Gray
+4 dalšíUSB-C 6 in 1 Hub Wozinsky WHBC10Y4S Multifunctional, Aluminum, with 25 cm Cable – Gray
Need a compact yet incredibly functional USB-C hub? The Wozinsky WHBC10Y4S is a solid docking station that combines six ports in one aluminum housing, offering fast data transfer, charging at up to 100W and support for 4K display. It allows you to connect multiple devices at once – monitors, data carriers, keyboards or power supplies – all from a single USB-C port. It supports simultaneous operation of two screens, offering mirror and extended modes. It is a reliable tool for work, presentations or home entertainment. The whole thing is enclosed in a stylish, durable aluminum housing.
Specification:
- Brand: Wozinsky
- Model: Wozinsky WHBC10Y4S
- Input connector:
- USB-C 3.2 (full functionality), data transfer up to 10 Gbps, PD3.0 support, power supply up to 85W, DP Alt Mode 1.4
- Output connectors:
- 1× USB-C PD input (PD 3.0, up to 100W)
- 1× USB-C (video + USB 3.2 Gen2, up to 10Gbps, support 4K/60Hz)
- 2× USB-C (USB 3.2 Gen2, up to 10 Gbps)
- 1× USB-A (USB 3.2 Gen2, up to 10 Gbps)
- 1× HDMI (4K/60Hz, MST under Windows, SST under macOS)
- Video resolution:
- HDMI: up to 4096×2160/60Hz
- USB-C DisplayPort: up to 3840×2160/60Hz
- Power supply: PD input 100W, actual charging up to 85W (15W is consumed by the station)
- LED Indicator: 1× Power LED
- Supported modes: Mirror (SST), Extended (MST – Windows only)
- Standards: HDCP 1.4/2.2, DP Alt Mode 1.4
- Material: aluminum alloy
- Color: gray
- Chipsets:
- GL3590 (USB3.2Gen2)
- RTD2143 (Display)
- VL103 (Power Delivery)
- RTS5459 (Command and Control)
The most important advantages of the Wozinsky WHBC10Y4S USB-C Hub:

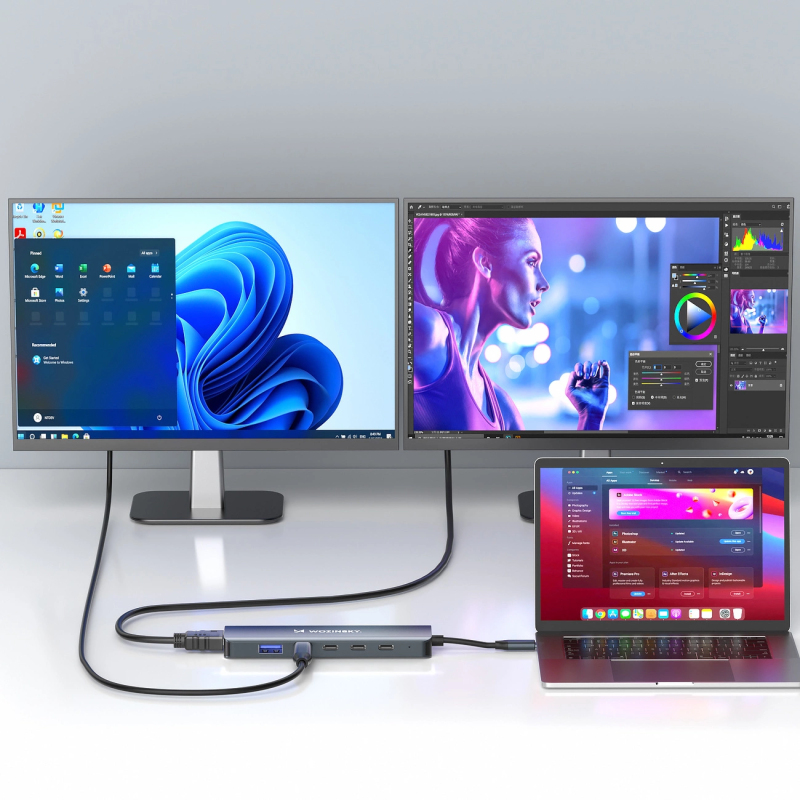

- Dual screen operation: MST and SST mode support allows you to extend or duplicate the image on two monitors simultaneously.
- Lightning-fast data transfers: USB-C 3.2 Gen2 ports deliver speeds of up to 10Gbps – perfect for transferring large files.
- High PD compatibility: Charge your devices at up to 100W thanks to support for the Power Delivery 3.0 protocol.
- Durable housing: Made of aluminum, resistant to overheating and damage, yet stylish.
- Plug & Play without drivers: The hub works immediately after connection – no software installation required.
Performance and functionality in a compact package
WHBC10Y4S combines 6 essential functions in one device – USB-C, HDMI, Power Delivery and DisplayPort – all in a lightweight, portable form factor.

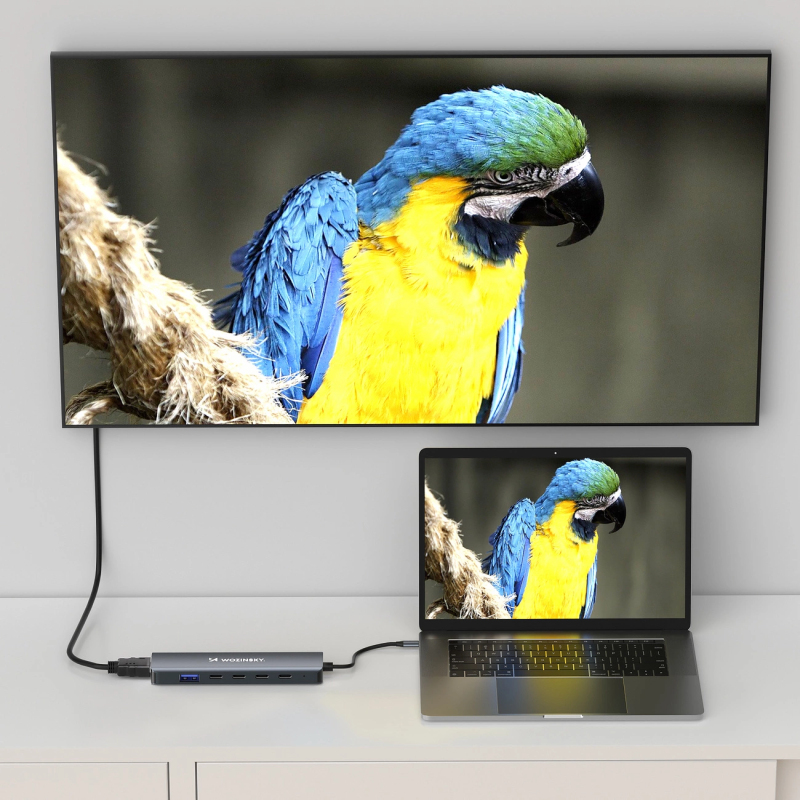

Display the image in 4K quality
Thanks to the HDMI port and DP Alt Mode 1.4 support, you can enjoy images at up to 4096×2160 resolution at 60 Hz.
Lightning-fast data transfer with USB 3.2 Gen2
3 USB-C ports and one USB-A enable data transfer at up to 10 Gb/s – without unnecessary delays.

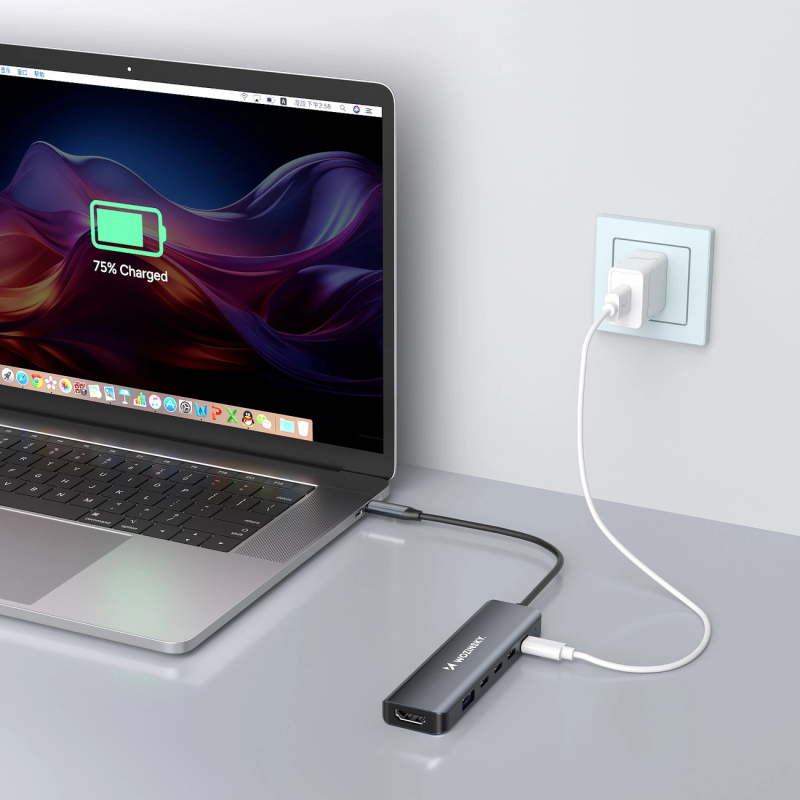

Stable power supply thanks to Power Delivery
PD 100W support allows you to charge your laptop and other devices at full power – even during intensive work.
Intelligent chipsets are responsible for performance
The use of dedicated GL3590, RTD2143, VL103 and RTS5459 chips guarantees smooth operation of all functions without interference.
Supported resolutions in MST/SST mode*:
| DP version | HDMI | USB-C | Comments |
| DP1.4 | 4096×2160 / 60Hz | X | Single video output |
| DP1.4 | X | 3840×2160 / 60Hz | Single video output |
| DP1.4 | 3840×2160 / 30Hz | 3840×2160 / 30Hz | Dual video outputs |
| DP1.2 | 3840×2160 / 30Hz | X | Single video output |
| DP1.2 | X | 3840×2160 / 30Hz | Single video output |
| DP1.2 | 2560×1440 / 60Hz | 2560×1440 / 60Hz | Dual video outputs |
* Supported resolutions depend on the signal source and operating system.
| Typ konektoru: | USB-C (male) |
